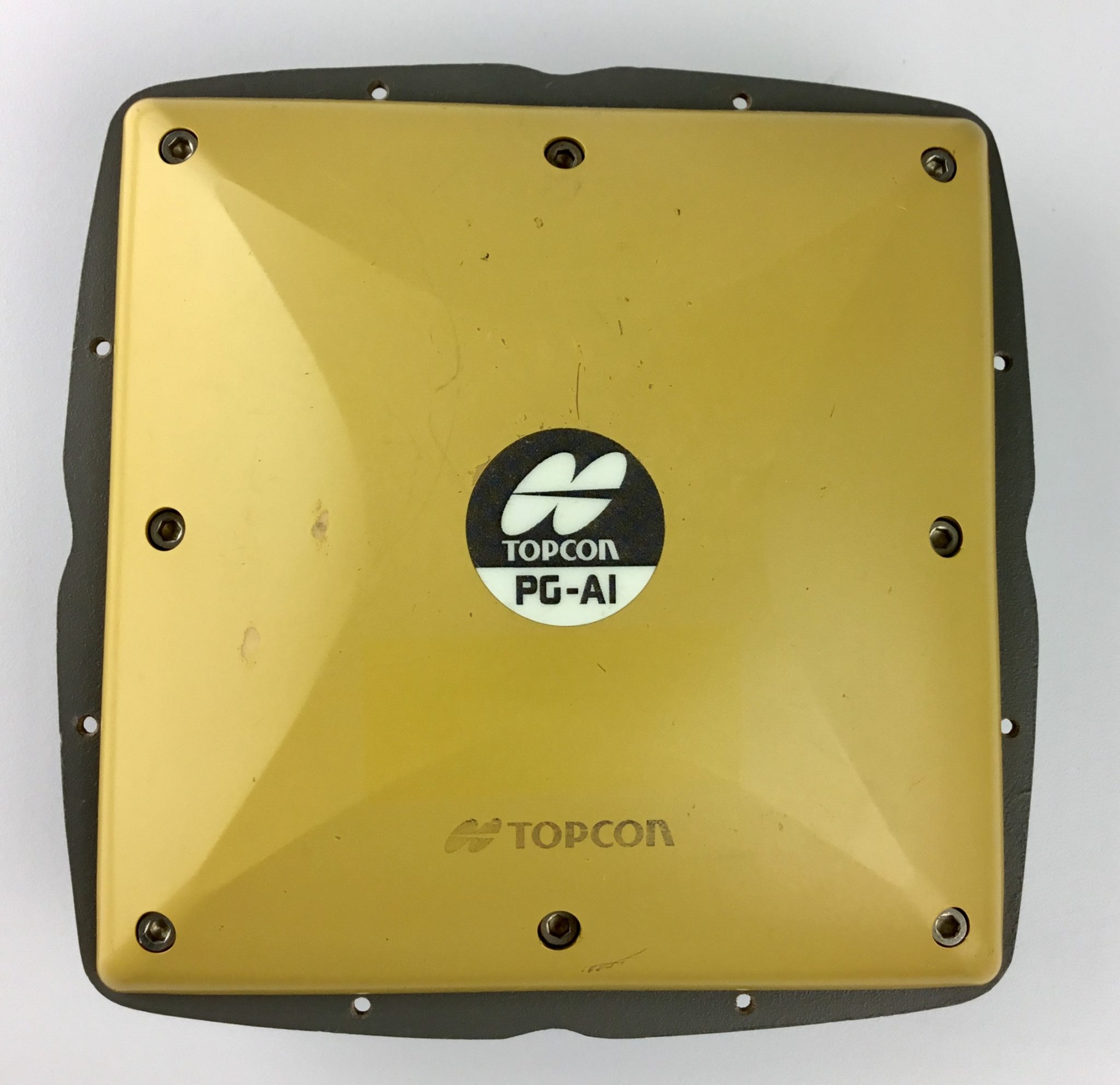

Topcon PG-A1 GNSS GPS/GLONASS Antenna

Product Description

The PG-A1 is a precision dual-frequency, dual-constellation antenna featuring precision micro center technology and an integrated ground plane to help eliminate errors caused by multipath. The PG-A1 was designed to accompany the Topcon modular receivers such as the Legacy-E, Legacy-H and Odyssey-RS.

Frequency	Dual frequency GPS+
Integrated UHF	No
Centering	Precision Micro Center
Type	Microstrip on flat ground plane
Weight	492g
Dimensions	141.6mm x 141.6mm x 52.7mm
DC voltage	+2.7 – +12V; 25A @ 5.0 typ.
LNA gain	30 ± 2dB
Output	50 Ohm.

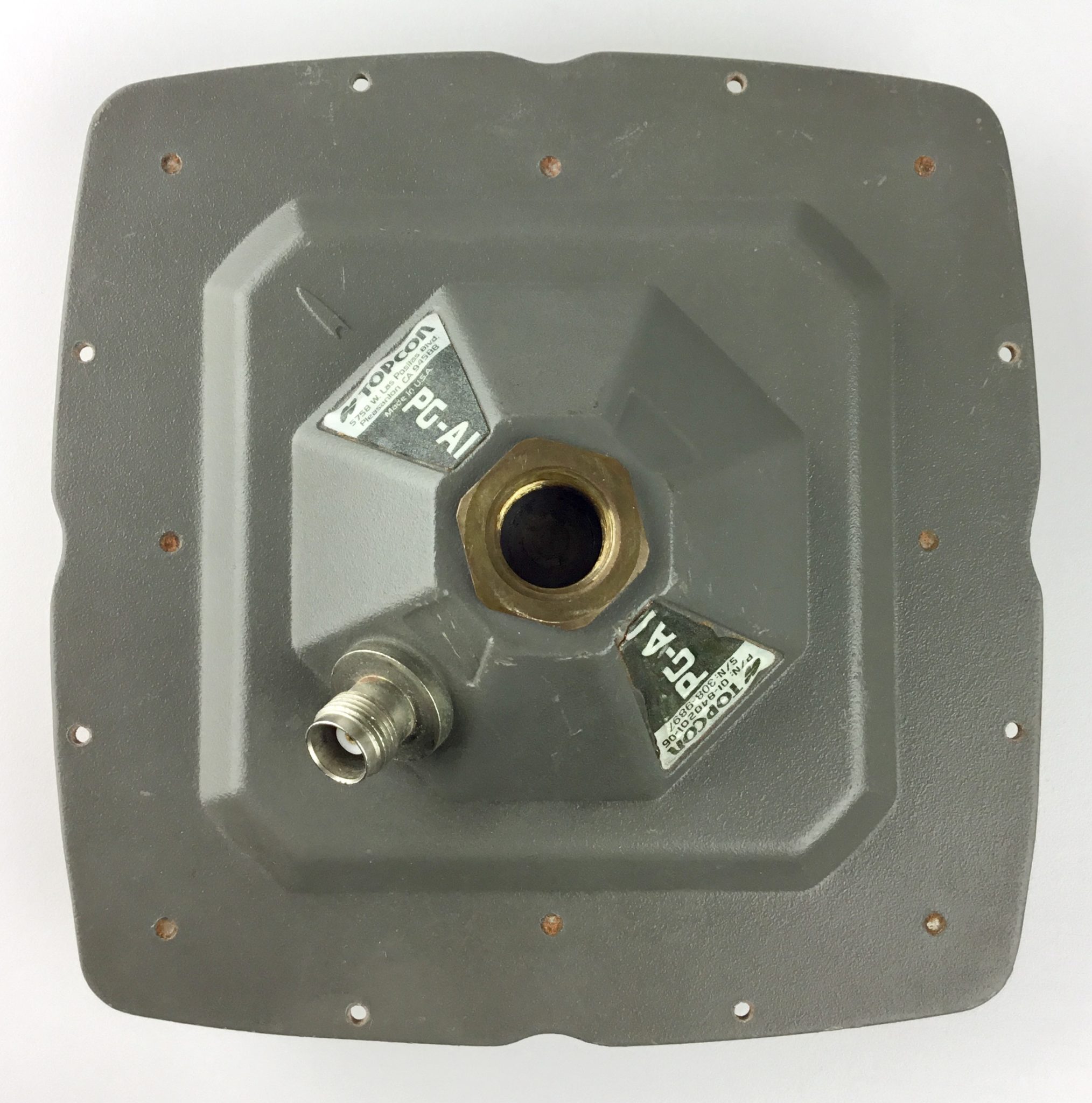

Connector	TNC
Environmental	Waterproof
Operating temperature	-40°C – +55°C
Shock Resistance	2-meter pole drop

UPN213
