Carlson RT4 7″ Windows 10 Data Collector Tablet

$2,990.00

The Carlson RT4 is designed for surveying, stakeout, construction layout, and GIS mapping and is bundled with Carlson SurvPC – the Windows-based data collection program. SurvPC includes the option of running the Esri OEM program for GIS field work. The RT4 can also be used in the office with any Carlson office software. With 8GB of RAM and 128 GB of storage, you’ll have the power to collect and analyze your data faster and more efficiently than ever before.

  • Powerful Windows 10 for office-to-field use
  • Plenty of memory – 8 GB RAM & 128 GB flash storage

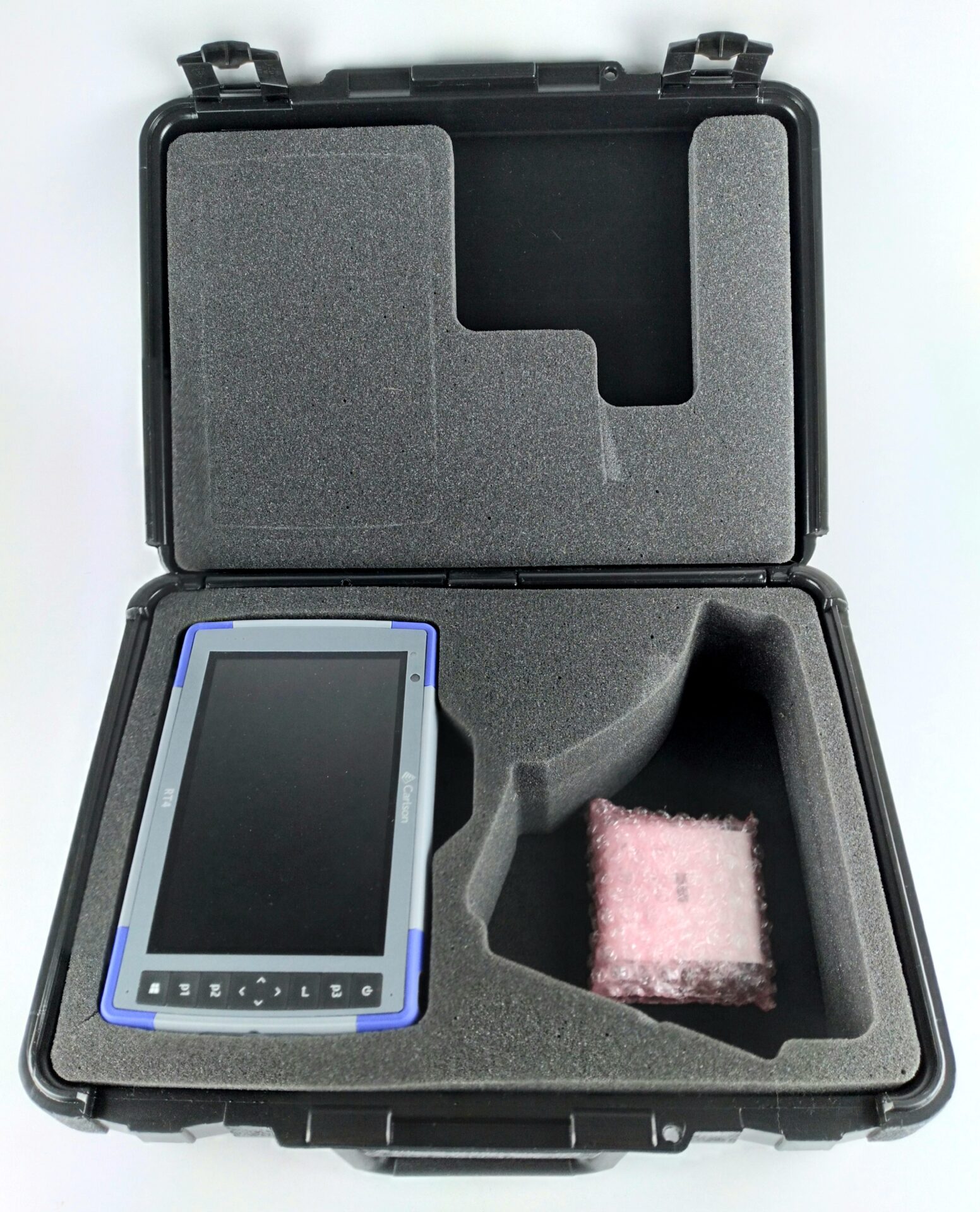

Base Price includes RT4 Basic with Wifi/BT, battery, charger, carrying case and stylus.

Hardware Upgrade Options

+ $400.00

Includes 4G LTE Cell Modem

+ $800.00

Includes 4G LTE Cell Modem and uBlox NEO-M8N GNSS receiver and integrated antenna

Software Upgrade Options

+ $1,160.00
+ $1,360.00

Does not require SurvPC Basic TS

+ $1,000.00

Requires SurvPC Basic TS

+ $500.00

Requires SurvPC Basic TS

+ $500.00

Requires SurvPC Basic TS

+ $500.00

Requires SurvPC Basic TS, Robotics, GPS

Hardware Accessories

+ $250.00
+ $599.00
Product price
Additional options total:
Order total:
0
Category:

Product Description

SPECIFICATIONS

PROCESSOR
• Quad-core Intel® Pentium N4200 processor
OPERATING SYSTEM
• Microsoft® Windows 10
MEMORY AND DATA STORAGE
• 8 GB RAM (LPDDR4)
• 128 GB flash storage
• User-accessible MicroSDXC card slot
GRAPHICS
• Intel® HD Graphics
DISPLAY
• Active viewing area: 7” (178 mm)
• Resolution: WXGA (1280 x 800)
• Best-in-class sunlight view-ability
• Automatic screen rotation
TOUCH SCREEN
• Projected capacitive multi-touch interface for use with gloves, small tip stylus, and in wet conditions
KEYBOARD
• Adjustable LED backlit keys
• Four-way directional navpad
• Windows/home key
PORTS
• USB 3.0
• 12 VDC power input jack
• Docking port connections (Power, USB 2.0, HDMI, & ethernet)
•Optional RS-232 9-Pin D-Sub connector with 5VDC power output
BATTERY
• Removable Li-Ion battery, 43.2 Whr
• Operates 8–10 hours on one charge
• Hot-swappable battery, easily changed in field

WIRELESS CONNECTIVITY OPTIONS
• Long-range Bluetooth® Smart Ready wireless technology, v5.0 +EDR, Class 1.5, BLE support
• Wi-Fi· 802.11 a/b/g/n/ac, 2.4 GHz and 5 GHz
• 4G LTE (CELL & GEO/CELL MODELS)

CAMERA
• Rear: 8 MP with LED illumination
• Front:2MP
• Photos embedded with date, time, and GNSS position (GEO/CELL MODEL)

RUGGEDIZATION
• IP68 waterproof and dustproof
• Operating Temperature: -4 F to 122 F (-20° C to 50° C)
• Shockproof: multiple drops from 4’ (1.2–1.5 m) onto concrete

PHYSICAL
• Size: 5.40” w x 8.48” Ix 1.36” d (137 x 215 x 35 mm)
• Weight: 1.5-2 lbs (680-907 g) depending on battery configuration
• Easy-to-grip, impact-absorbing, overmolded bumpers
• Lightweight and ergonomic design

WARRANTY
• 2-Year Warranty
• Service Plans Available

Available models
• STANDARD
• CELL
• GEO/CELL
