GeoMax Zenith35 Pro GNSS Base and Rover Kit with TAG and Surveyor2 Data Collector

$8,450.00



Full spectrum of satellite signals, unlimited connectivity and the unique Tilt & Go functionality all compressed in a compact GNSS make the Zenith35 series the GNSS that works when you do. This unit features the same 555 channel Novatel measurement engine found in Leica receivers and it absolutely blows away the competition. Superior performance and great value is what this receiver is all about!

Out of stock

Product Description

A corner of a building or even a gully under a parked car? Measure points where satellite signals are blocked by eaves or canopies? No problem with Zenith35 Pro TAG – just Tilt&Go! Free yourself from working with your pole kept strictly vertical and tilt it up to 30°, and still maintaining GNSS accuracy. Need to ensure you keep your pole vertical? The Zenith35 Pro TAG warns you when outside your defined centering accuracy and documents the quality of your measurements.

Remove complexity with access from any device connected to the internet, independent of your location. Connect up to 10 rovers simultaneously via GSM with Zenith35 DynDNS technology.

Kit also includes Surveyor2 Data Collector with Carlson Software and the following modules: Total Station, Robotics, GPS, and Roads.

UPN 621

The package includes the following components:

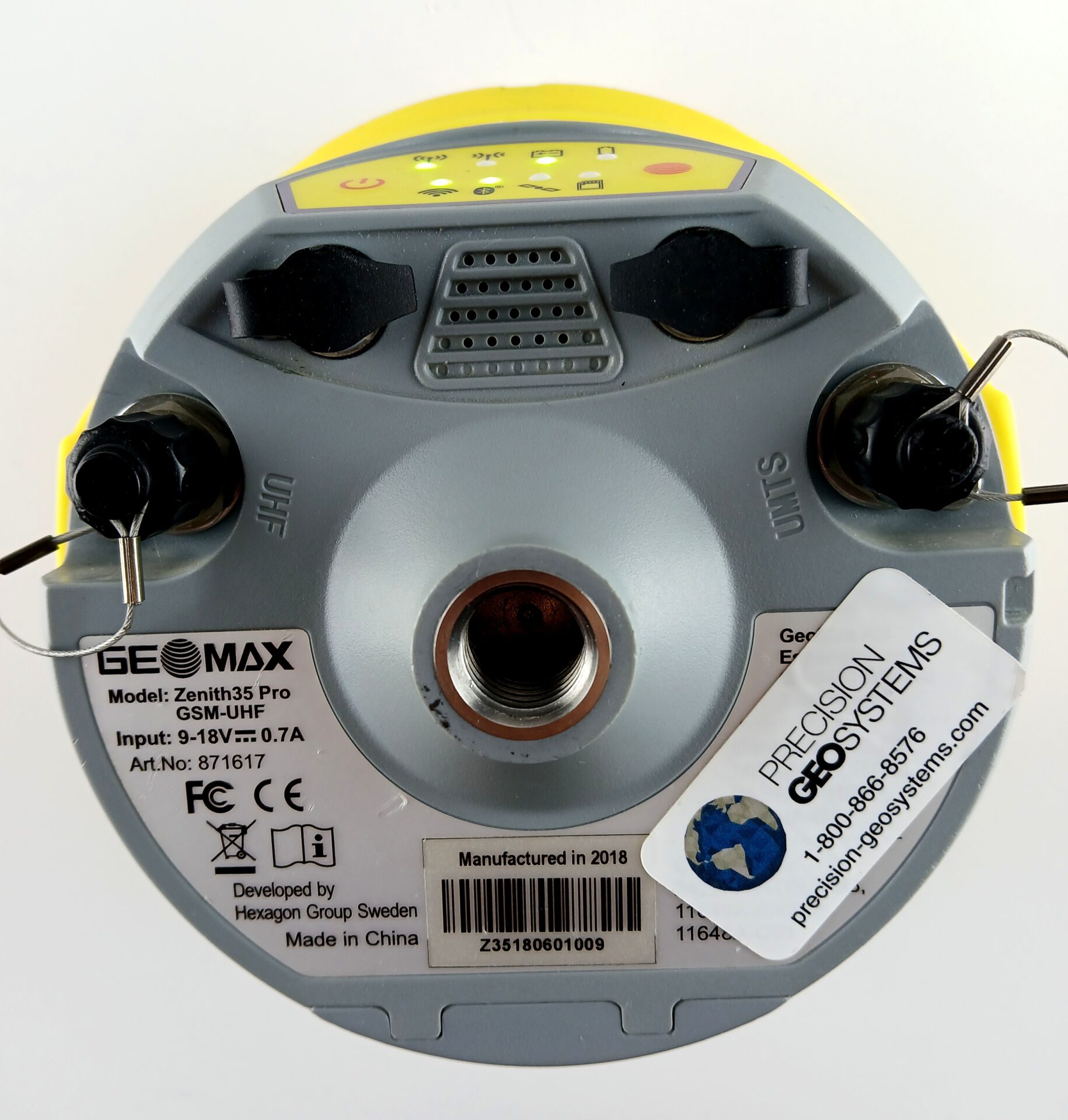

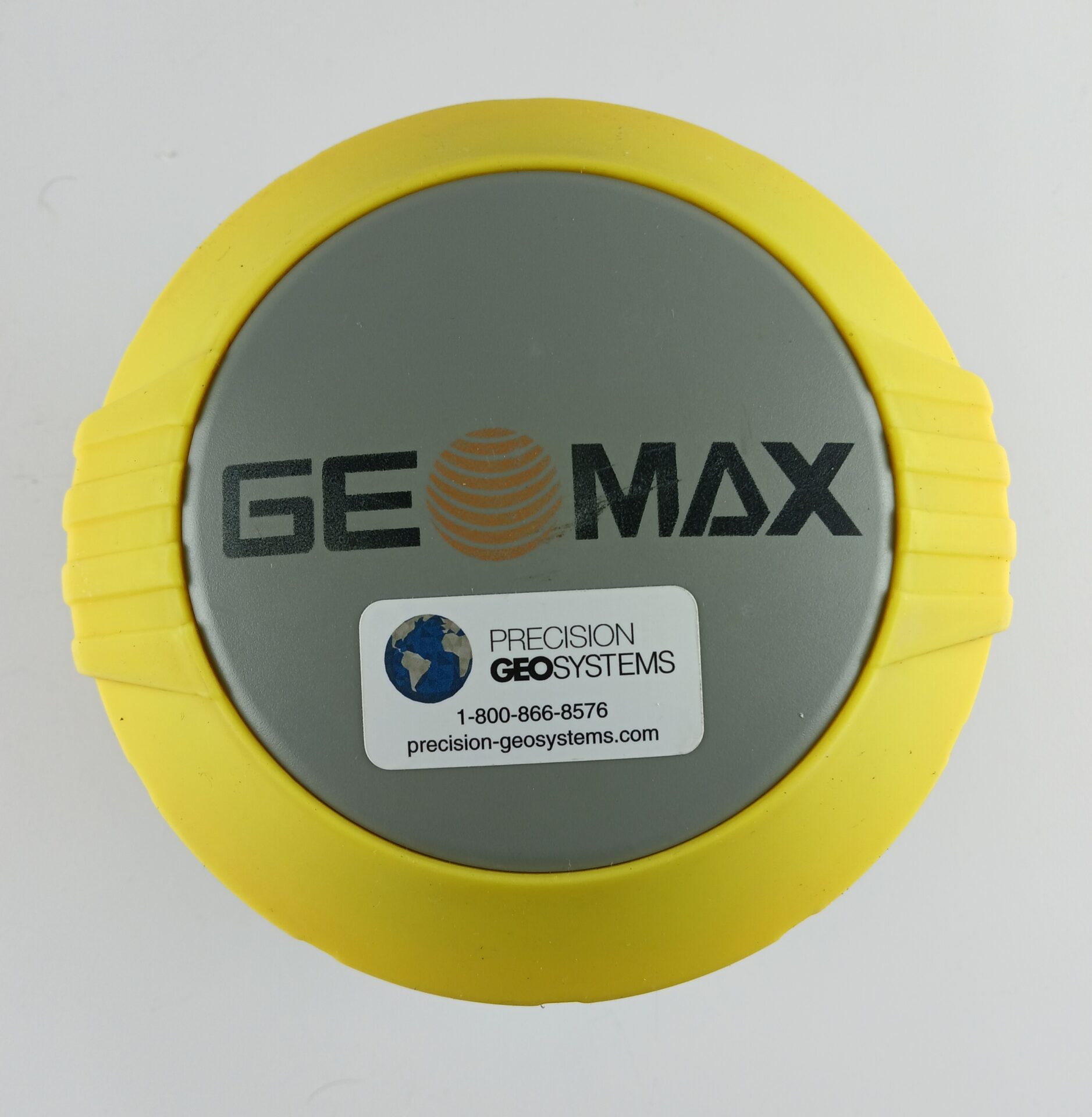

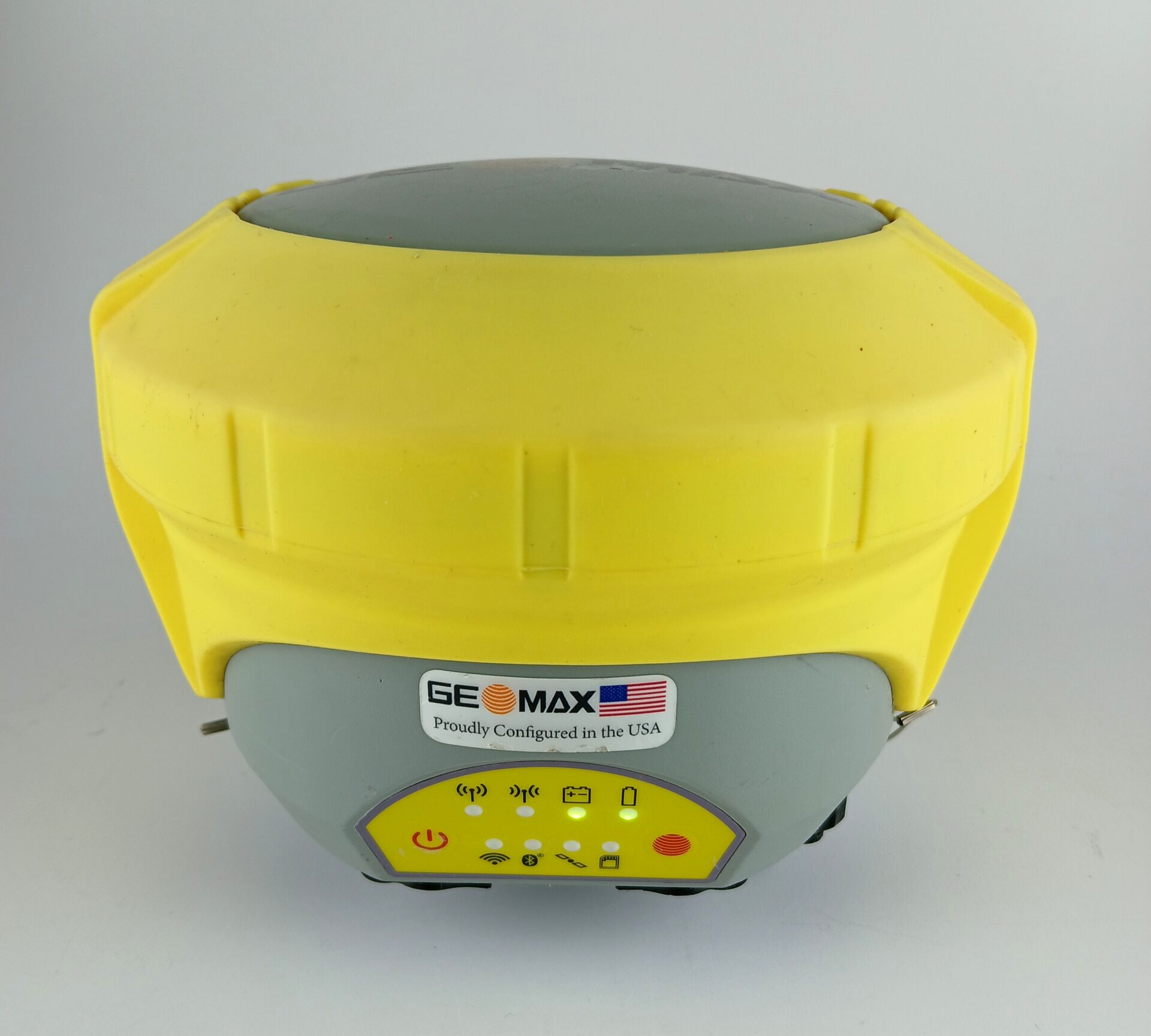

  • (2) Zenith35 Pro GNSS receivers, 555 channels, with internal 3.75G GSM, WLAN, Bluetooth and UHF module, GPS+GLONASS, L5, Galileo, BeiDou, multi-frequency satellite tracking,  with TAG (Tilt and Go) feature on the Rover unit.
  • (6) Geomax ZBA601 litium ion Batteries
  • (2) two-bay Battery chargers
  • (1) Tilt calibration tool
  • (2) GSM antennas
  • (2) UHF antennas
  • (1) Antenna extension arm
  • (1) Tribrach
  • (1) Carrier with 6″ Extension Pole
  • (2) Data Cable for Zenith 35
  • Zenith 35 Pro User Manual (on CD)

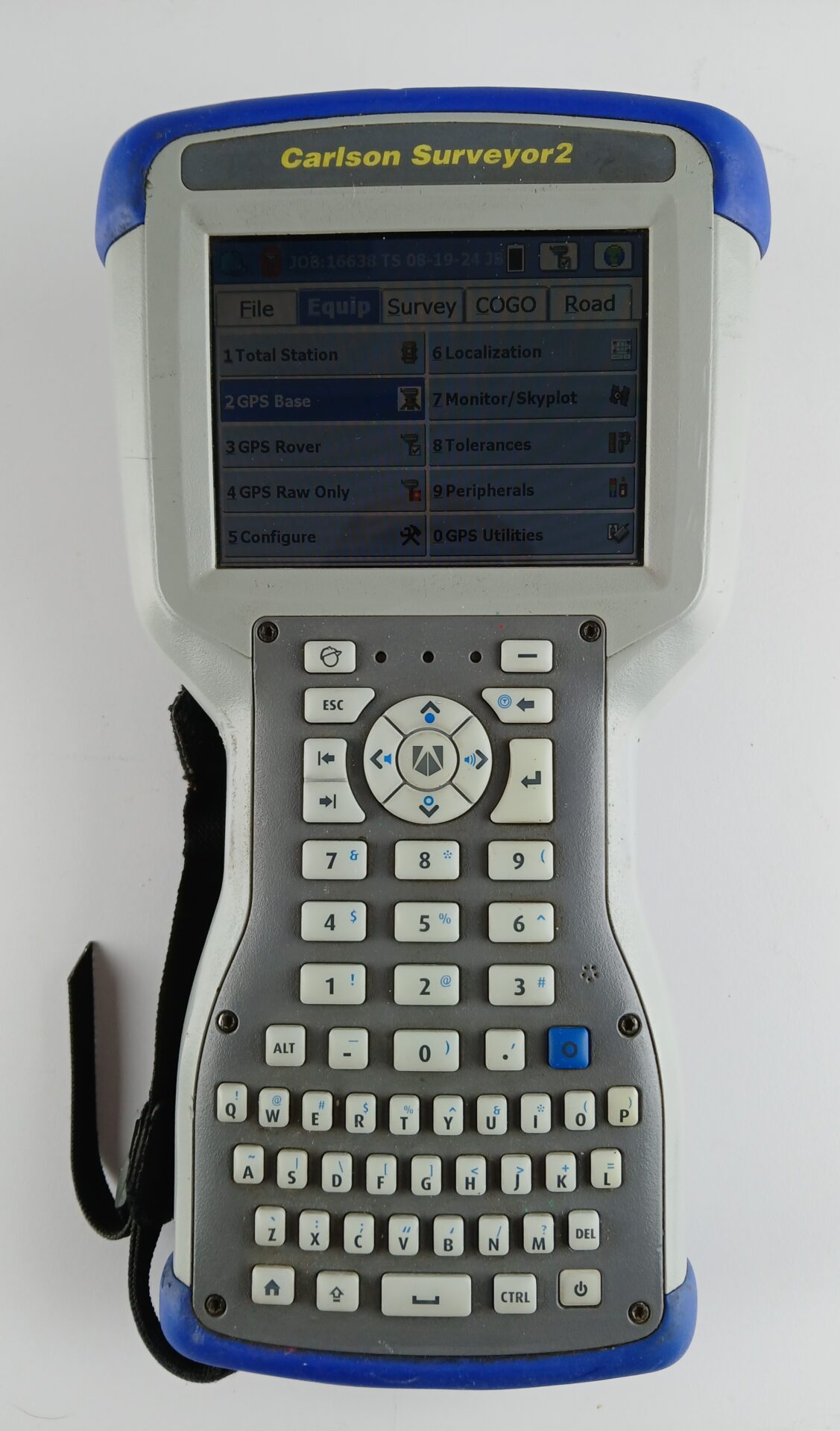

  • (1) Surveyor2 Data Collector with Charger and Carlson SurvCE Software v. 6.16 that includes the following modules: TS, Robotics, GPS, Roads. Note: Carlson Software is sold as is and is not upgradable or transferable.
  • (2) Hard Cases for Zenith 35 units (also accommodates the Surveyor2)
